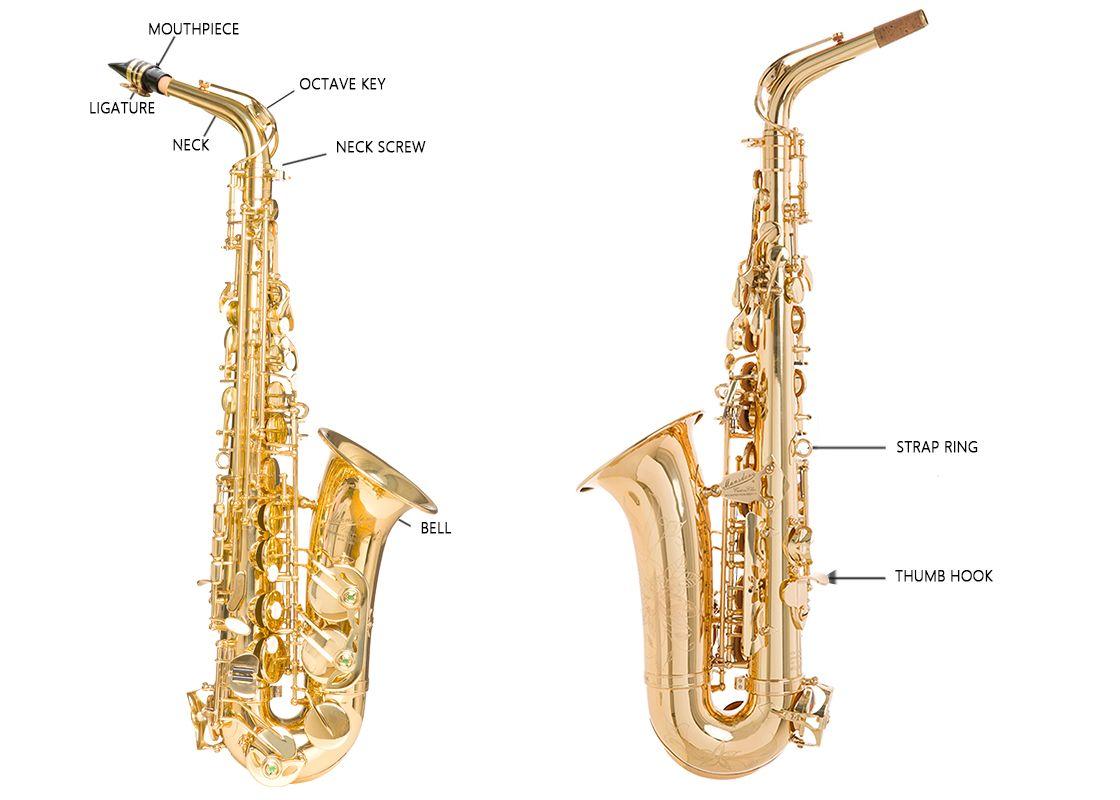

Saxophone's Structure

The structure of a saxophone is composed of several parts, each of which affects the instrument's sound, volume, and playability. Here are the main components of a saxophone:

1. Mouthpiece

• Function: The mouthpiece is the part of the saxophone that directly contacts the player's mouth. It determines how the air enters the instrument and influences the tone. Mouthpieces are typically made of hard rubber, metal, or plastic.
• Components:
  • Reed: A thin piece of wood (usually made from cane) attached to the mouthpiece, which vibrates as air is blown across it to produce sound.
  • Ligature: A clamp that secures the reed onto the mouthpiece.
  • Mouthpiece Cap: A protective cover for the mouthpiece and reed, used to safeguard the instrument when not in use.

2. Neck

• Function: The neck connects the mouthpiece to the body of the saxophone and serves as the channel for air to enter the instrument. The shape and curve of the neck can affect the tone and playability.
• Features: Some high-end saxophones allow for interchangeable necks with different materials or designs to alter the sound and playing experience.

3. Body

• Function: The body is the main part of the saxophone, containing all the keys and tone holes, which determine the basic pitch range of the instrument.
• Components:
  • Tone Holes: By pressing keys to open or close the tone holes, the pitch is altered. The position and size of the tone holes directly influence the pitch and sound quality.
  • Keys: The player presses the keys to control the opening and closing of the tone holes, changing the pitch. The keys are usually padded with cork or leather to ensure an airtight seal.

4. Key System

• Function: The key system uses a complex lever mechanism to connect the tone holes. By pressing key combinations, the player can produce different notes. Mansdone has made patented improvements to the key rods, replacing traditional screw structures with ball-tip structures, eliminating the issue of loose screws and making it easier for players to perform at their best.
• Features: The design of the keys allows players to press multiple tone holes quickly while maintaining accurate pitch and tone consistency.

5. Bell

• Function: The bell is the saxophone's exit point, where the sound is projected. The shape and size of the bell have a significant impact on the resonance and volume, especially in the lower register.
• Features: Different types of saxophones (soprano, alto, tenor, etc.) have different bell sizes, which affect the spread and quality of sound. Mansdone has enlarged the bell of the alto saxophone, making it easier to produce sound with less effort and creating a more resonant tone.

6. Neck Strap Ring

• Function: The neck strap ring is used to attach a strap or harness to the saxophone, helping the player bear the instrument's weight, reducing strain on the hands, and maintaining a stable playing posture.

7. Octave Key

• Function: The octave key is used to change the pitch range, particularly for higher notes.
• Features: Mansdone has optimized the octave key mechanism in its advanced models, addressing the issue of traditional octave keys scratching the instrument's surface. This improvement offers better protection for the saxophone body and provides more flexible key movement.

The saxophone is composed of multiple parts, and the design and material selection for each part significantly influence the instrument's tone, volume, and playing comfort. While different brands and models of saxophones may vary slightly in these aspects, the overall structure remains consistent.
